moving to hugging face

.gitignore

@@ -0,0 +1,6 @@
+.env
+*.pyc
+plot.py
+.venv
+.chroma

LICENSE

@@ -0,0 +1,21 @@
+MIT License
+
+Copyright (c) 2023 Eric Johnson
+
+Permission is hereby granted, free of charge, to any person obtaining a copy
+of this software and associated documentation files (the "Software"), to deal
+in the Software without restriction, including without limitation the rights
+to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
+copies of the Software, and to permit persons to whom the Software is
+furnished to do so, subject to the following conditions:
+
+The above copyright notice and this permission notice shall be included in all
+copies or substantial portions of the Software.
+
+THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
+IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
+FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
+AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
+LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
+OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
+SOFTWARE.

README.md

@@ -1,13 +1,58 @@
----
-title: Gpt Mavplot
-emoji: ⚡
-colorFrom: gray
-colorTo: green
-sdk: gradio
-sdk_version: 3.32.0
-app_file: app.py
-pinned: false
-license: mit
----
-
-Check out the configuration reference at https://huggingface.co/docs/hub/spaces-config-reference
+# GPT_MAVPlot
+
+MAVPlot is a Python-based project which uses Gradio as an interface and GPT-X powered by OpenAI as a chatbot to generate and plot MAVLink data. It provides an easy-to-use, chatbot-like interface for users to describe the plot they would like to generate.
+

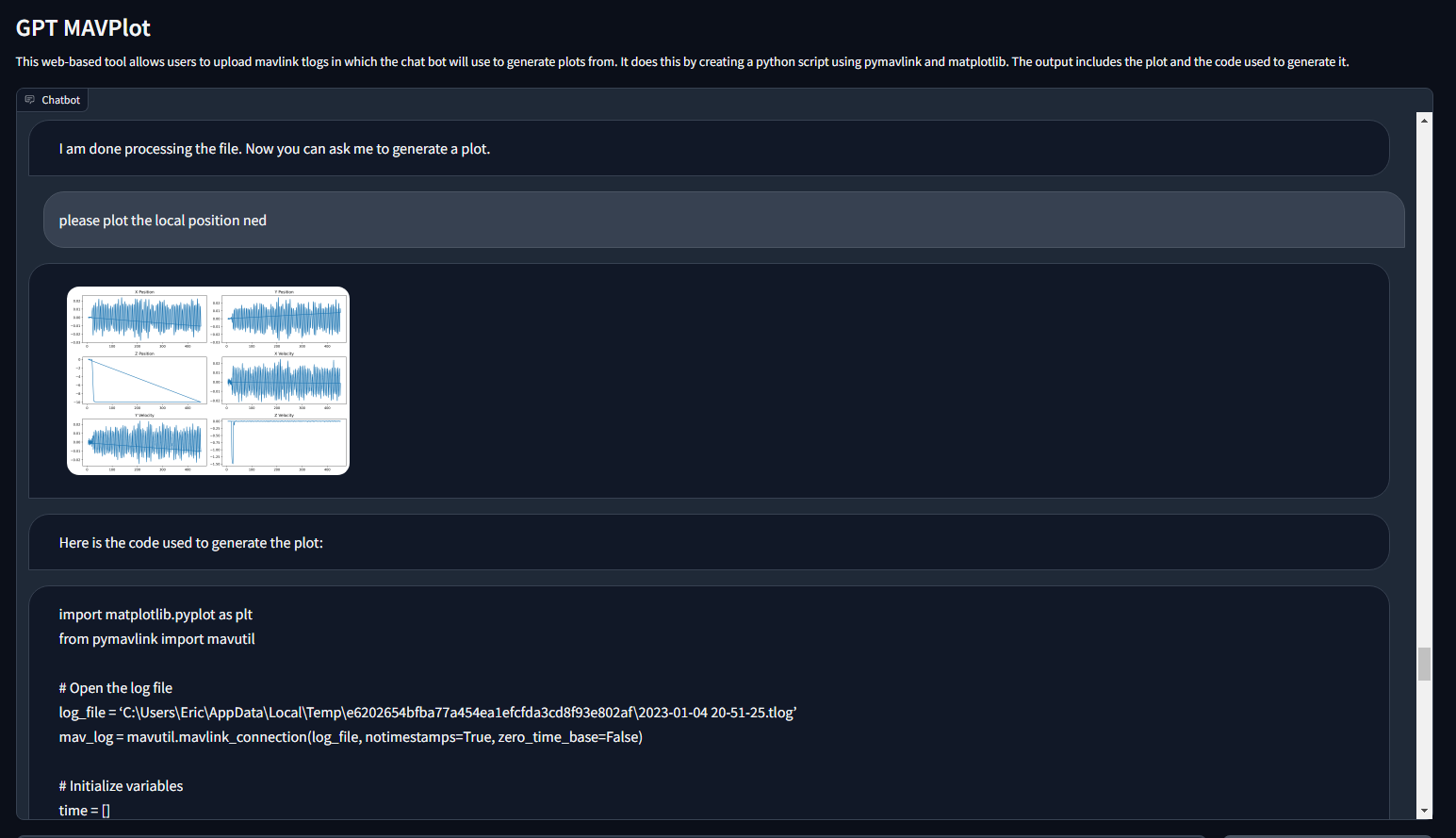

+![chat bot](docs/chat_bot_if.PNG)
+
+## Architecture
+
+![arch](docs/GPT_MAVPlot_Arch.png)
+
+## Installation
+
+Clone the repository:
+
+```shell
+git clone https://github.com/yourusername/mavplot.git
+```
+
+Setup Python Virtual Environment:
+
+```shell
+python3 -m venv .venv
+```
+
+Activate the virtual environment:
+
+```shell
+source .venv/bin/activate
+```
+
+
+Install the requirements:
+
+```shell
+pip install -r requirements.txt
+```
+
+Setup .env File
+
+Copy the `template.env` file to a file named `.env` in your root directory. Add your Openai API key to the file
+
+## Usage
+
+After installing all dependencies, run the main script using:
+
+```shell
+python gpt_mavplot.py
+```
+
+A web-based Gradio interface will launch. You can upload a mavlink tlog then prompt the bot to generate plots from the log. The chatbot will process your request and generate the corresponding plot, which will be displayed in the chat interface. The script use to generate the log will also be posted to the chat interface.
+
+## Contributing
+
+Pull requests are welcome. For major changes, please open an issue first to discuss what you would like to change. Please make sure to update tests as appropriate.
+
+## License
+
+[MIT](https://choosealicense.com/licenses/mit/)

app.py

@@ -0,0 +1,85 @@
+import gradio as gr
+import os
+from llm.gptPlotCreator import PlotCreator
+
+plot_creator = PlotCreator()
+
+def add_text(history, text):
+    history = history + [(text, None)]
+    return history, ""
+
+def add_file(history, file):
+    history = history + [((file.name,), None)]
+    return history
+
+def format_history(history):
+    return "\n".join([f"Human: {entry[0]}\nAI: {entry[1]}" for entry in history ])
+
+def bot(history):
+    # Get the last input from the user
+    user_input = history[-1][0] if history and history[-1][0] else None
+
+    print(user_input)
+
+    # Check if it is a string
+    if isinstance(user_input, str):
+
+        history[-1][1] = "I am figuring out what data types are relevant for the plot...\n"
+        yield history
+        data_types_str = plot_creator.find_relevant_data_types(user_input)
+
+        history[-1][1] += "I am now generating a script to plot the data...\n"
+        yield history
+        plot_creator.create_plot(user_input, data_types_str)
+
+        history[-1][1] += "I am now running the script I just Generated...\n"
+        yield history
+        response = plot_creator.run_script()
+
+        history = history + [(None, f"Here is the code used to generate the plot:")]
+        history = history + [(None, f"{response[1]}")]
+        history = history + response[0]
+
+
+        yield history
+    else:
+        file_path = user_input[0]
+        plot_creator.set_logfile_name(file_path)
+
+        # get only base name
+        filename, extension = os.path.splitext(os.path.basename(file_path))
+
+        history[-1][0] = f"user uploaded file: {filename}{extension}"
+        history[-1][1] = "processing file..."
+        yield history
+
+        data_types = plot_creator.parse_mavlink_log()
+        history = history + [(None, f"I am done processing the file. Now you can ask me to generate a plot.")]
+        yield history
+
+    return history
+
+
+with gr.Blocks() as demo:
+    gr.Markdown("# GPT MAVPlot\n\nThis web-based tool allows users to upload mavlink tlogs in which the chat bot will use to generate plots from. It does this by creating a python script using pymavlink and matplotlib. The output includes the plot and the code used to generate it. ")
+    chatbot = gr.Chatbot([], elem_id="chatbot").style(height=750)
+
+    with gr.Row():
+        with gr.Column(scale=0.85):
+            txt = gr.Textbox(
+                show_label=False,
+                placeholder="Enter text and press enter, or upload an image",
+            ).style(container=False)
+        with gr.Column(scale=0.15, min_width=0):
+            btn = gr.UploadButton("📁", file_types=["file"])
+
+    txt.submit(add_text, [chatbot, txt], [chatbot, txt]).then(
+        bot, chatbot, chatbot
+    )
+    btn.upload(add_file, [chatbot, btn], [chatbot]).then(
+        bot, chatbot, chatbot
+    )
+
+if __name__ == "__main__":
+    demo.queue()
+    demo.launch()

llm/gptPlotCreator.py

@@ -0,0 +1,272 @@
+import re
+import random
+import linecache
+import subprocess
+from langchain.prompts import PromptTemplate
+from langchain.chat_models import ChatOpenAI
+from langchain.chains import LLMChain
+from langchain.llms import OpenAI
+from langchain.chains import ConversationChain
+from langchain.memory import ConversationBufferMemory
+from langchain.prompts.chat import (
+    ChatPromptTemplate,
+    HumanMessagePromptTemplate,
+)
+from langchain.vectorstores import Chroma
+from langchain.embeddings.openai import OpenAIEmbeddings
+import os
+from dotenv import load_dotenv
+from PIL import Image
+
+# Import required modules
+from pymavlink import mavutil
+import json
+
+class PlotCreator:
+    """
+    PlotCreator is a class that generates Python scripts to plot MAVLink data
+    provided by a user, leveraging OpenAI's models for conversational agents.
+    """
+
+    last_code = ""  # stores the last code generated
+
+    def __init__(self):
+        """
+        Initialize an instance of PlotCreator.
+        """
+
+        load_dotenv()  # load environment variables from a .env file
+
+        self.model = os.getenv("OPENAI_MODEL")  # get the name of the OpenAI model to use
+
+        # create an instance of ChatOpenAI with the specified model, maximum tokens, and temperature
+        llm = ChatOpenAI(model_name=self.model, max_tokens=2000, temperature=0)
+
+        # define the input variables and template for the prompt to generate Python scripts
+        mavlink_data_prompt = PromptTemplate(
+            input_variables=["data_types", "history", "human_input", "file"],
+            template="You are an AI conversation agent that will be used for generating python scripts to plot mavlink data provided by the user. Please create a python script using matplotlib and pymavlink's mavutil to plot the data provided by the user. Please do not explain the code just return the script. Please plot each independent variable over time in seconds. Please save the plot to file named plot.png in the same directory as plot.py with at least 400 dpi. please use blocking=false in your call to recv_match and be sure to break the loop if a msg in None. here are the relevant data types in the log:\n\n{data_types} \n\nChat History:\n{history} \n\nHUMAN: {human_input} \n\nplease read this data from the file {file}.",
+        )
+
+        # create an instance of LLMChain with the defined prompt and verbosity
+        self.chain = LLMChain(verbose=True, llm=llm, prompt=mavlink_data_prompt)
+
+    @staticmethod
+    def extract_code_snippets(text):
+        """
+        Extracts code snippets from a text.
+
+        This function searches the text for substrings enclosed in '```', which are assumed to be code snippets.
+
+        Args:
+            text (str): The text to search for code snippets.
+
+        Returns:
+            list: A list of code snippets found in the text. If no snippets are found, returns a list containing the original text.
+        """
+
+        pattern = r'```.*?\n(.*?)```'  # pattern to match code snippets enclosed in '```'
+        # use regex to find all matches of the pattern in the text
+        snippets = re.findall(pattern, text, re.DOTALL | re.MULTILINE)
+        if len(snippets) == 0:  # if no snippets were found
+            snippets = [text]  # treat the entire text as a single snippet
+        return snippets
+
+    @staticmethod
+    def write_plot_script(filename, text):
+        """
+        Writes a script to a file.
+
+        Args:
+            filename (str): The name of the file to write the script to.
+            text (str): The script to write to the file.
+        """
+
+        with open(filename, 'w') as file:  # open the file for writing
+            file.write(text)  # write the script to the file
+
+    def attempt_to_fix_sctript(self, filename, error_message):
+        """
+        Attempts to fix a script that caused an error.
+
+        Args:
+            filename (str): The name of the file containing the script.
+            error_message (str): The error message produced by the script.
+
+        Returns:
+            list: A list containing the fixed script, or the original script with an error message if it couldn't be fixed.
+        """
+
+        # create an instance of ChatOpenAI with the specified model, maximum tokens, and temperature
+        llm = ChatOpenAI(model_name=self.model , max_tokens=8000, temperature=0)
+
+        # define the input variables and template for the prompt to generate Python scripts
+        fix_plot_script_template = PromptTemplate(
+            input_variables=["data_types", "error", "script"],
+            template="You are an AI agent that is designed to debug scripts created to plot mavlink data using matplotlib and pymavlink's mavutil. the following script produced this error: \n\n{script}\n\nThe error is: \n\n{error}\n\n Here are message definitions that are possibly relevant for the script:\n\n {data_types}\n\n. Please fix the script so that it produces the correct plot. please return the fixed script in a markdown code block.",
+        )
+
+        # read script from file
+        with open(filename, 'r') as file:
+            script = file.read()
+
+        # create an instance of LLMChain with the defined prompt and verbosity
+        chain = LLMChain(verbose=True, llm=llm, prompt=fix_plot_script_template)
+        try:
+            response = chain.run({"data_types" : self.message_types, "error": error_message, "script": script})  # run the LLMChain with the error and script as input
+        except:
+            return "Sorry I couldn't fix the script. Here is the original script I tried:\n\n" + script
+        print(response)
+        code = PlotCreator.extract_code_snippets(response)  # extract the fixed script from the response
+        PlotCreator.write_plot_script("plot.py", code[0])  # write the fixed script to a file
+
+        # run the fixed script
+        try:
+            subprocess.check_output(["python", "plot.py"], stderr=subprocess.STDOUT)
+        except:
+            code[0] = "Sorry I was unable to fix the script.\nThis is my attempt to fix it:\n\n" + code[0]
+        return code
+
+    def set_logfile_name(self, filename):
+        """
+        Set the name of the log file.
+
+        :param filename: The name of the log file.
+        :type filename: str
+        """
+        self.logfile_name = filename
+
+    def find_relevant_data_types(self, human_input):
+        # Search the database for documents that are similar to the human input
+        docs = self.db.similarity_search(human_input)
+
+        # Concatenate the content of the documents into a string
+        data_type_info_text = ""
+        for doc in docs:
+            data_type_info_text += doc.page_content + "\n\n"
+
+        return data_type_info_text
+
+    def run_script(self):
+        # Run the script and if it doesn't work, capture the output and call attempt_to_fix_script
+        try:
+            subprocess.check_output(["python", "plot.py"], stderr=subprocess.STDOUT)
+        except subprocess.CalledProcessError as e:
+            print(e.output.decode())
+            code = self.attempt_to_fix_sctript("plot.py", e.output.decode())
+            self.last_code = code[0]
+
+        except Exception as e:
+            print(e)
+            code = self.attempt_to_fix_sctript("plot.py", str(e))
+            self.last_code = code[0]
+
+
+        # Return a list containing the filename of the plot and the code used to generate it
+        return [[(None, ("plot.png",))], self.last_code]
+
+    def create_plot(self, human_input, data_type_info_text):
+        """
+        Create a plot based on the input provided by the human.
+
+        :param human_input: Input provided by the human.
+        :type human_input: str
+        """
+
+        # Create a history of generated scripts if one exists
+        if self.last_code != "":
+            history = "\n\nLast script generated:\n\n" + self.last_code
+        else:
+            history = ""
+
+
+        # Generate a response by running the chain with the relevant data types, history, file name and human input
+        response = self.chain.run({"data_types" : data_type_info_text, "history" : history, "file": self.logfile_name, "human_input": human_input})
+        print(response)
+
+        # Parse the code from the response
+        code = self.extract_code_snippets(response)
+
+        # Write the code to a file named "plot.py"
+        self.write_plot_script("plot.py", code[0])
+
+        # Store the code for the next iteration
+        self.last_code = code[0]
+
+
+        return code[0]
+
+
+    def parse_mavlink_log(self):
+        """
+        Parse the MAVLink log to extract unique message types and their fields.
+
+        :return: A JSON string representation of the unique message types and their fields.
+        :rtype: str
+        """
+        # Initialize a dictionary to store unique message types and their fields
+        self.message_types = {}
+
+        # Establish a MAVLink connection
+        mav_log = mavutil.mavlink_connection(self.logfile_name)
+
+        # Loop through the log file and extract all unique message types
+        while True:
+            try:
+                # Receive a message
+                msg = mav_log.recv_match(blocking=False, type=None)
+                # Check if we received a message
+                if msg is None:
+                    break
+
+                # Store the unique message types and their fields in the dictionary
+                if msg.get_type() not in self.message_types:
+                    # Add the message type and its fields to the dictionary
+                    self.message_types[msg.get_type()] = {
+                        "count": 1,
+                        "fields": {field: type(getattr(msg, field)).__name__ for field in msg.get_fieldnames()}
+                    }
+                else:
+                    # Increment the count for this message type
+                    self.message_types[msg.get_type()]["count"] += 1
+
+            except KeyboardInterrupt:
+                break
+            except:
+                print("Unknown error")
+                break
+
+        # Create embeddings for the message types
+        self.create_embeddings(self.message_types)
+
+        # Return a JSON string of the message types
+        return json.dumps(self.message_types, indent=4)
+
+    def create_embedding(self, texts):
+        """
+        Create OpenAI embeddings for a list of texts.
+
+        :param texts: A list of texts to create embeddings for.
+        :type texts: list of str
+        """
+        # Initialize a dictionary to store the embeddings
+        embeddings = OpenAIEmbeddings(model="text-embedding-ada-002")
+        self.db = Chroma.from_texts(texts, embeddings)
+
+    def create_embeddings(self, message_types):
+        """
+        Create OpenAI embeddings for a dictionary of message types.
+
+        :param message_types: A dictionary of message types to create embeddings for.
+        :type message_types: dict
+        """
+        print(message_types)
+
+        # Convert the message types to a list of JSON strings
+        texts = []
+        for message_type in message_types:
+            texts.append(json.dumps({ message_type : message_types[message_type]}))
+
+        print(f"Texts: {texts}")
+        # Create the embeddings
+        self.create_embedding(texts)

requirements.txt

@@ -0,0 +1,10 @@
+gradio==3.32.0
+langchain==0.0.183
+Pillow==9.5.0
+pymavlink==2.4.37
+python-dotenv==1.0.0
+openai==0.27.7
+chromadb==0.3.25
+pymavlink==2.4.37
+matplotlib==3.7.1
+tiktoken==0.4.0

template.env

@@ -0,0 +1,2 @@
+OPENAI_API_KEY=
+OPENAI_MODEL=gpt-3.5-turbo
